Design Stage

The Design and Technical Specifications stage ("Design stage") involves the production of a package of AutoCAD design drawings, which all form the basis for the Construction stage.

A standard detailed design package includes the following drawings:

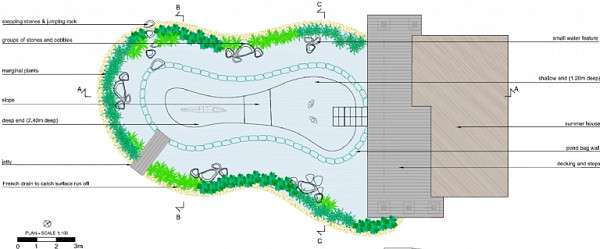

  • Overall plan (e.g. below)
  • Setting out
  • Excavation & profiles
  • Dividing structure (usually either pond bag wall or blockwork wall)
  • Pond edge and drainage
  • Liner
  • Filtration system
  • Planting plan
  • Access points e.g. steps, ladder, jumping rock
  • Other features as required e.g. waterfall, decking, lights

We can explain more about the Design and Construction stages during the Design Consultation.

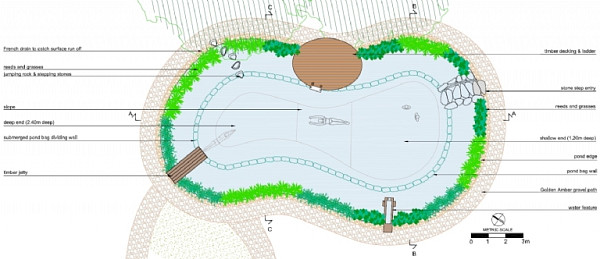

Design Plans
